HORNS
A collection of horns we've designed / made and things
we're currently TESTING / building.
We stand in awe of the great engineers and craftsmen before us. This is deliberately built on the foundations they laid, a tribute born of deep respect and admiration. We stand on the shoulders of giants.
[ALL] AVAILABLE UPON INQUIRY
MODEL:
L-819A
CUTOFF:
800HZ
DIMENSIONS:
16.5W x 13.5L x 6.5H
THROAT EXIT:
1 INCH

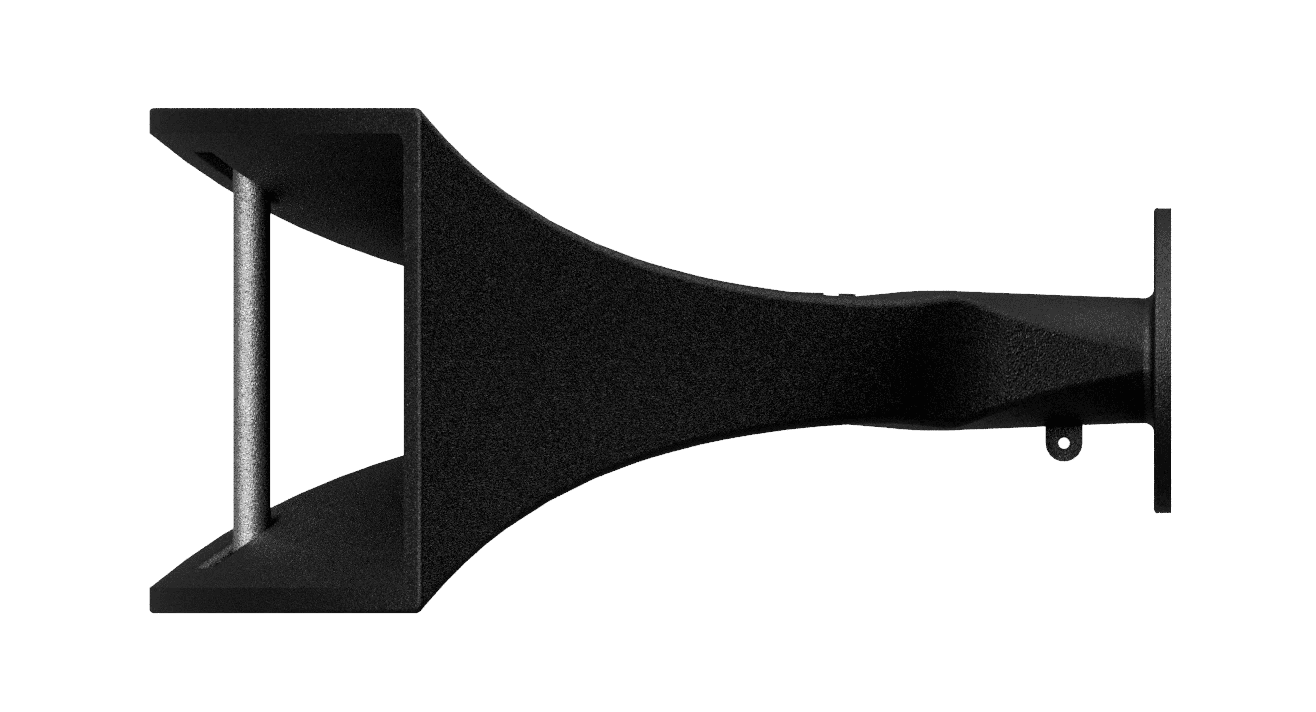

The 819a is a continuation on our redesigns of the iconic 329a. We wanted to design a horn with the look and performance of the 329 but with a desired cutoff of 800 hz.
A true 800 hz. This horns lowest cutoff is calculated to be 402 hz. As a strong recommendation its always best to crossover at around 2x of the horns fc. The result is a horn that loads exceptionally well at 800 hz and has the look and performance of a 329a with a smaller footprint.
The tolerances, draft angles and thicknesses were optimized with the help of a local foundry we work with to optimize the design for sand casting.
